Parameter:
• Nominal voltage: ±400
～
3000kV
• Chopping capacitance: 500
～
600 pF
• Chopping time: 2
～
6uS
• Chopping time deviation: 0.1uS
• Trigger type: three gap sphere discharge triggering
• Delay type: electronic delay with regulatable circuit
Structure:

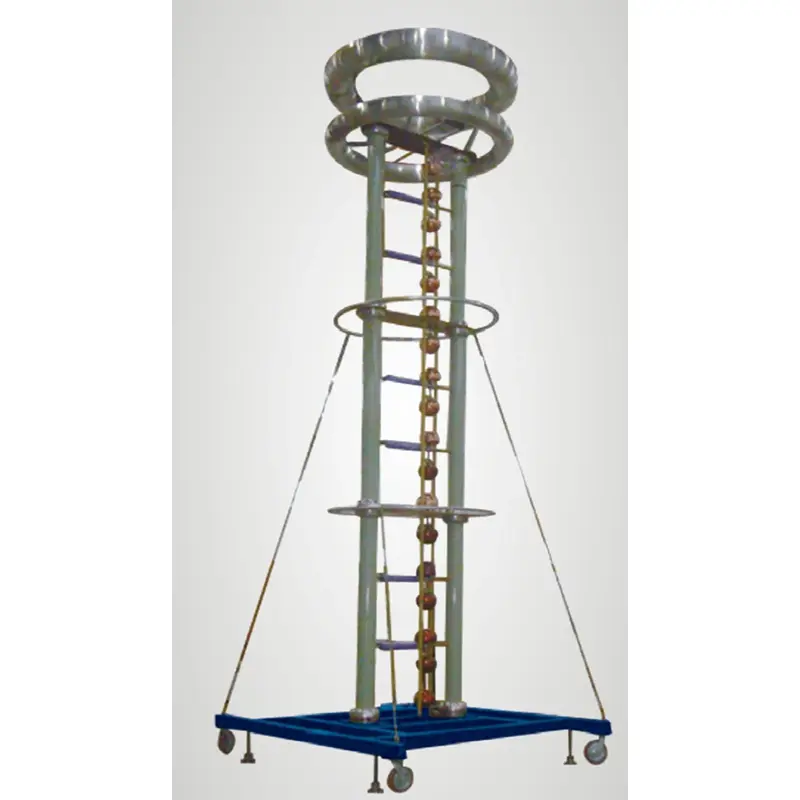

The multiple-stage gap chopping device is composed of three HV pulse capacitors through series connection. The whole device is non-inductance low voltage arm type and movable (The wheel is made of Polyurethane so that the floor can be protected). With control desk, the sphere gap can be remotely regulated. The delay triggering function is more stable and reliable. On top of the chopping device is the toroid.
