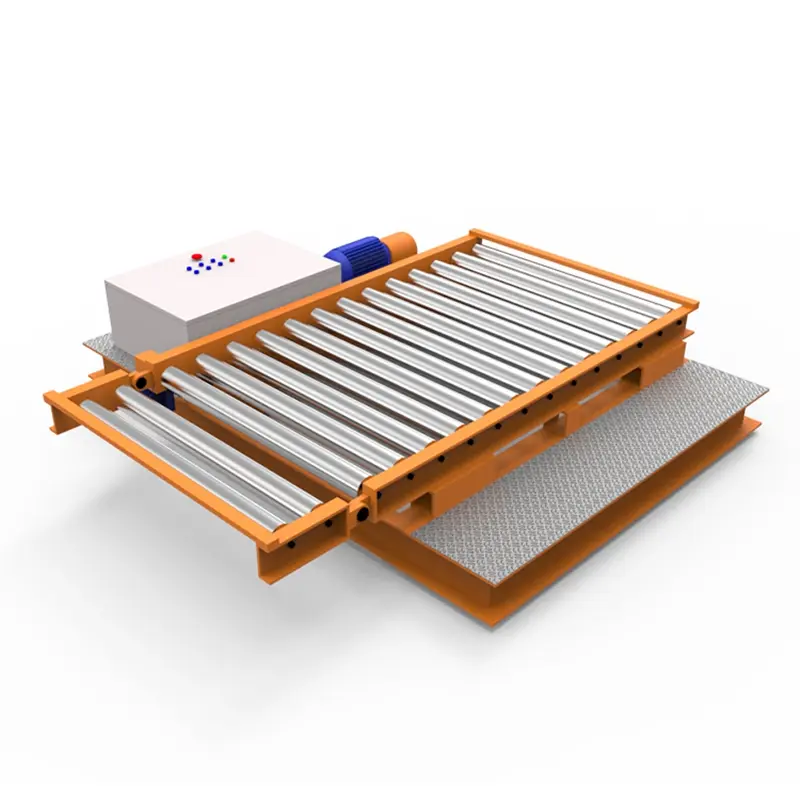

This equipment is mainly used in 2500 kva rollover fold core transformer core
.
Main Technical parameters and requires
Apply Core stacking range
Largest iron core:1736 * 320 * 1700mm
Max weight of core:4000 kg
Main Tilting Table Parameters

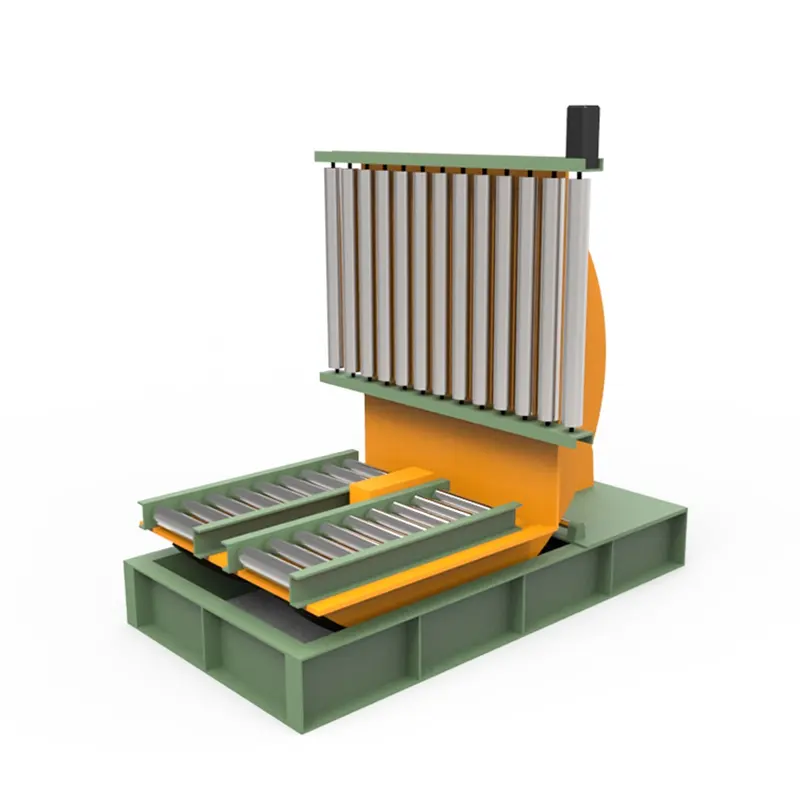

Tilt bench : Platform size 1500*1600mm
Platform height 420mm
After tilt height 240mm
Max loading:4000kg
Tilt angle:within 0-90°,Arbitrary can hover
Tilt speed:90°/ 40—60s (adjustable)
Main power:Hydraulic system
System working pressure; 0- 14 mpa
rated working pressure:14 Mpa
The two 90 degree of bench surface are densely bearing ball, convenient laminated and iron core move on it, The length of ball bench and width are match with lamination table size.
Equipment are consist of tilt platform, base, hydraulic system & electric control device etc.
The tilt platform, base components are made of thick steel plate after cutting machining, welding and into one. With the machine accuracy requirements to make the integral joint small,end face, and no waves. With sufficient strength and rigidity, make sure stood up switching process of stable and reliable. The strength of the structure more than 2 times of material weighing bearing to ensure safety.
The rotating mechanism, hydraulic system and electrical box were set on the bases, can make the equipment concise. Jack-up cylinder in parallel at bases,easy for installation and maintenance.
The hydraulic pump, hydraulic cylinder,pipe and valve part are adopt TAIWAN brand, with durable,reliable, sealing, no leakage.
All electrical components are concentrated in the electric box, installed on the equipment under. Convenient staff can be located in the best operating position control expediently.
