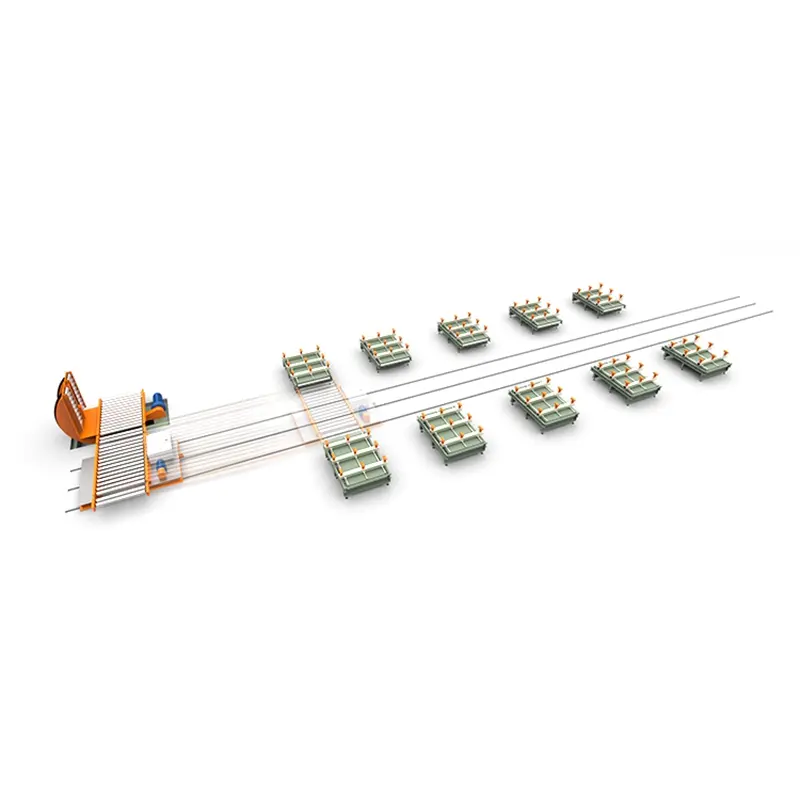

Core Stacking Line is the automatic auxiliary equipment for core lamination process, Consist of Roller Table, Core Stacking table, Trolley, and Tilting table. This Stacking Line is to replace the original laminated platform and Crane requirements, At the same time, the negative effect of core tilting on core performance after stacking is solved.
When stacking, the stacking table shall be placed on the working roller, and the position of the support column on the stacking table shall be adjusted according to the required size. After stacking, the stacking table shall be transported to the trolley and from the trolley to the tilting station to complete the tilting operation.

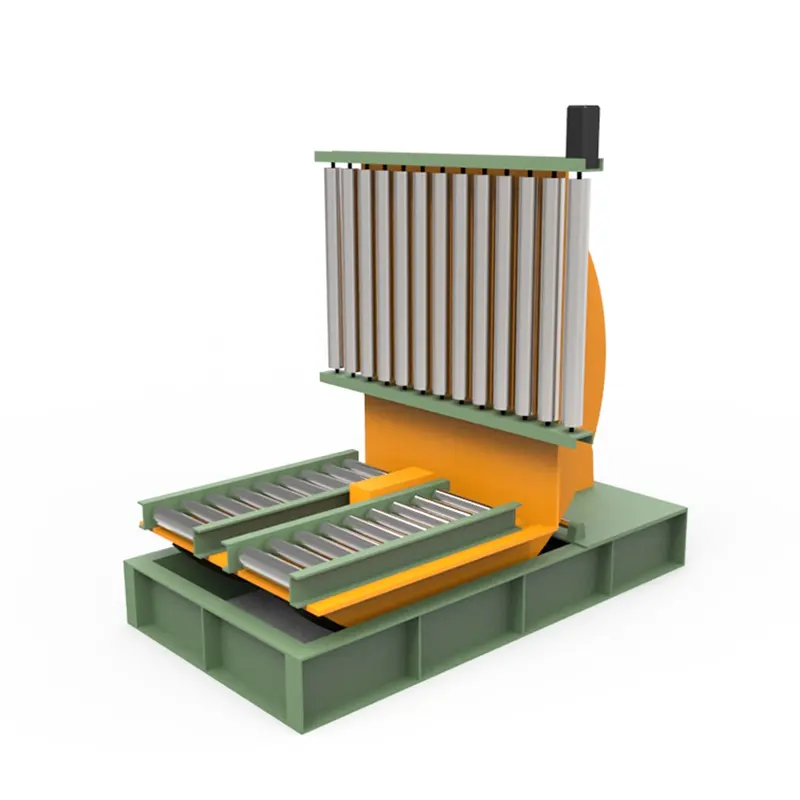

Core Tilting Table
Effective loading: Core weight ≤ 4 Ton
Workpiece Shape: Core Max Dimension ≤ W 2200, H 2400, T 400mm
Tilting Speed: 0-90°
：
≤ 60 s
Tilting mode: Electric
Roller drive: Motility
Automatic Trolley
Trolley Load : 5 ton
Walking speed: 20m/ min
Roller drive speed: 8m/min|
Roller drive qty
：
1
Overall dimension : L 2500* W 2000 *H 400mm(ground to roller)

Power supply : AC 24V, 3KW
Control mode: PLC Control, It can be automatically positioned between stacking station and tilting station
Safety protection: The front and behind of trolley have walking protection, induction distance is not less than 0.3 meters, there is an emergency stop switch at front and behind.

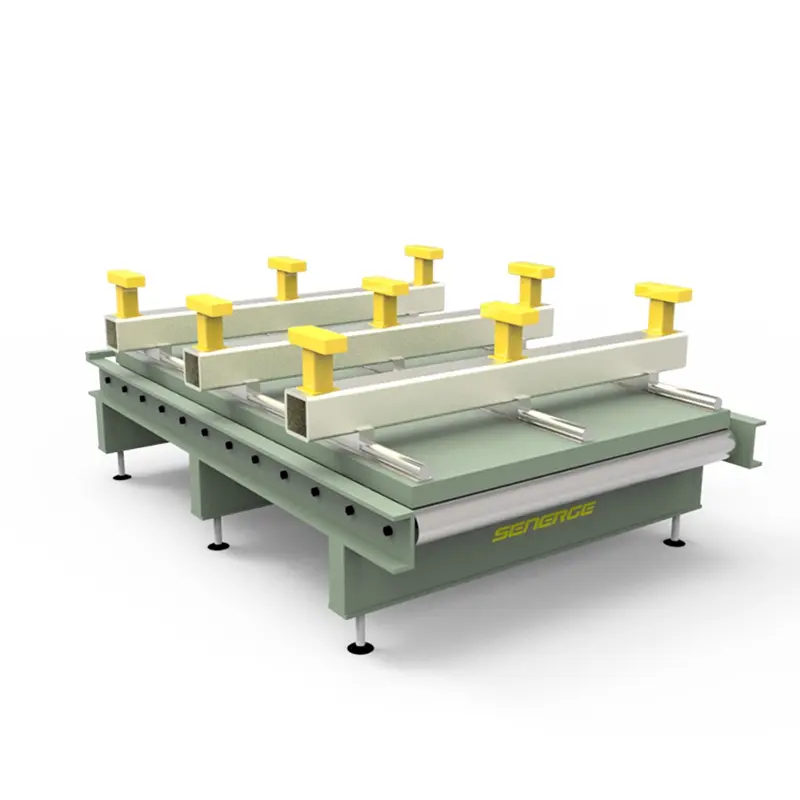

Moveable Core Stacking Table
Effective Loading: ≤ 4 ton
Overall Dimension: 1600* 1200 (1800) *400mm (When the shrink rod is extended 1800)
Core column adjust range : A-B, B-C (Mo) : 150- 710mm
Core Height: Max 1600mm
Core Stack Height: ≤ 400mm

Core Roller Table
Roller power: self-power
Effective load: ≤ 4 tons
Single roller load ≤ 300kg
Overall dimension :1610 * 1120 * 400mm (ground to roller top ±20mm)
