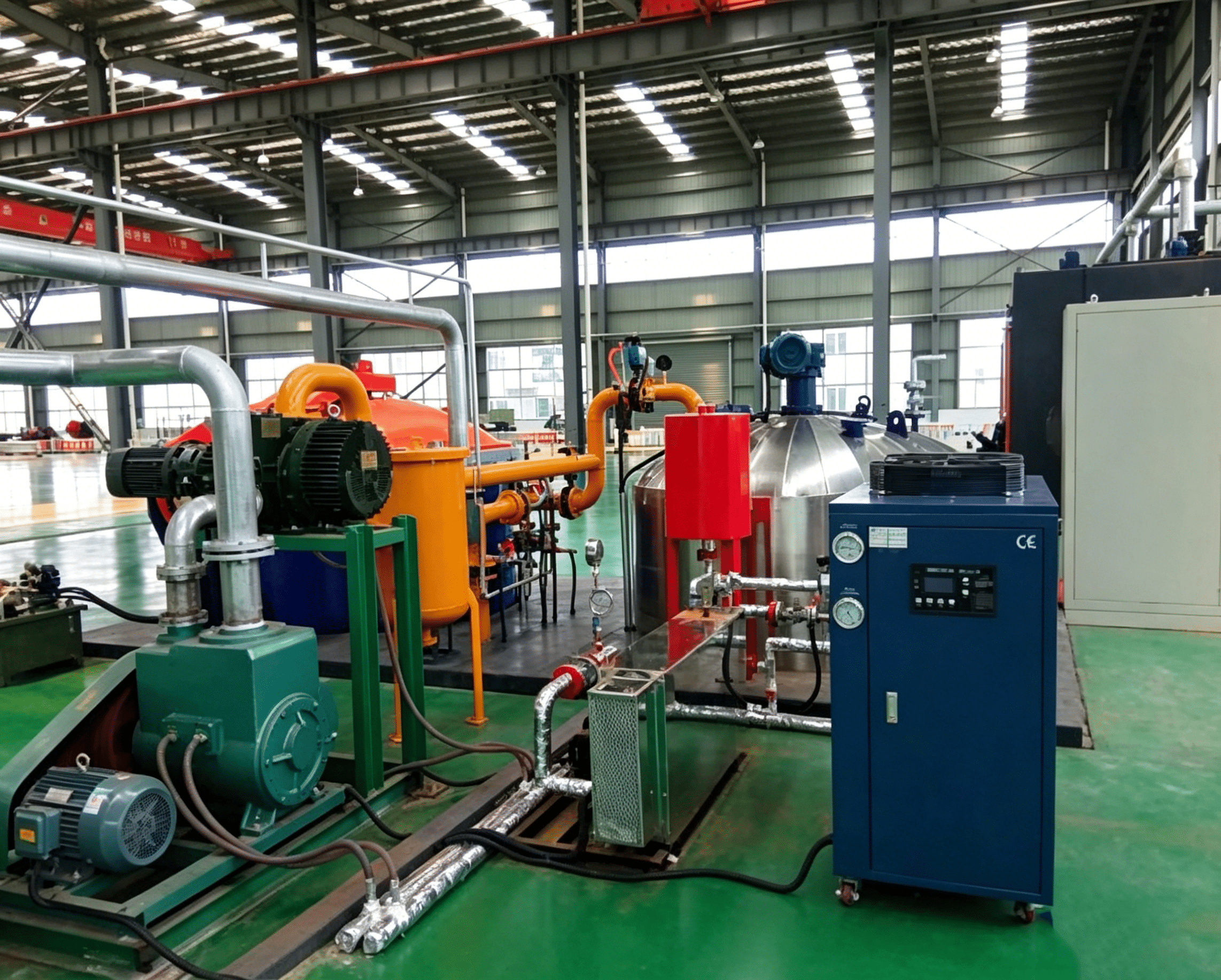

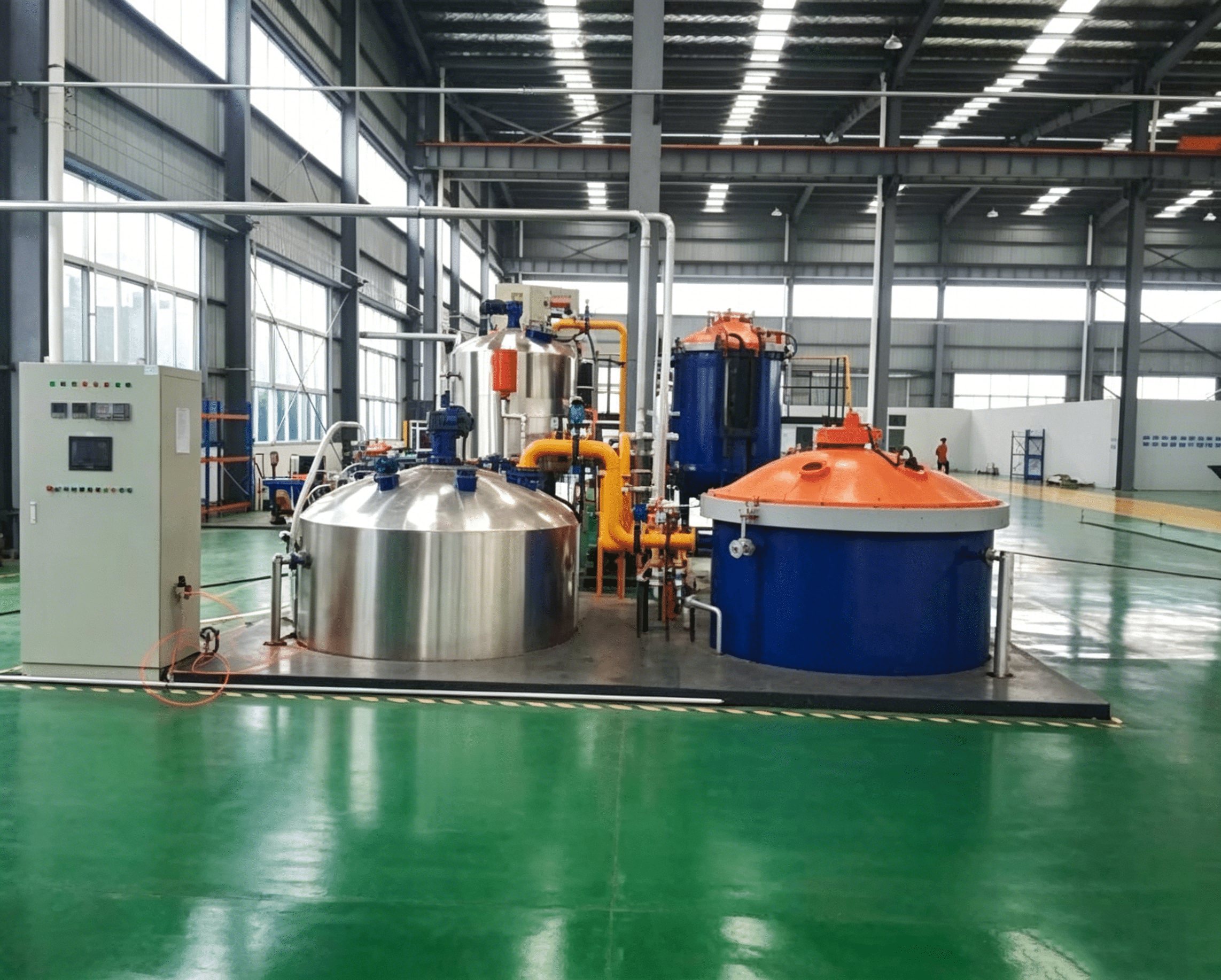

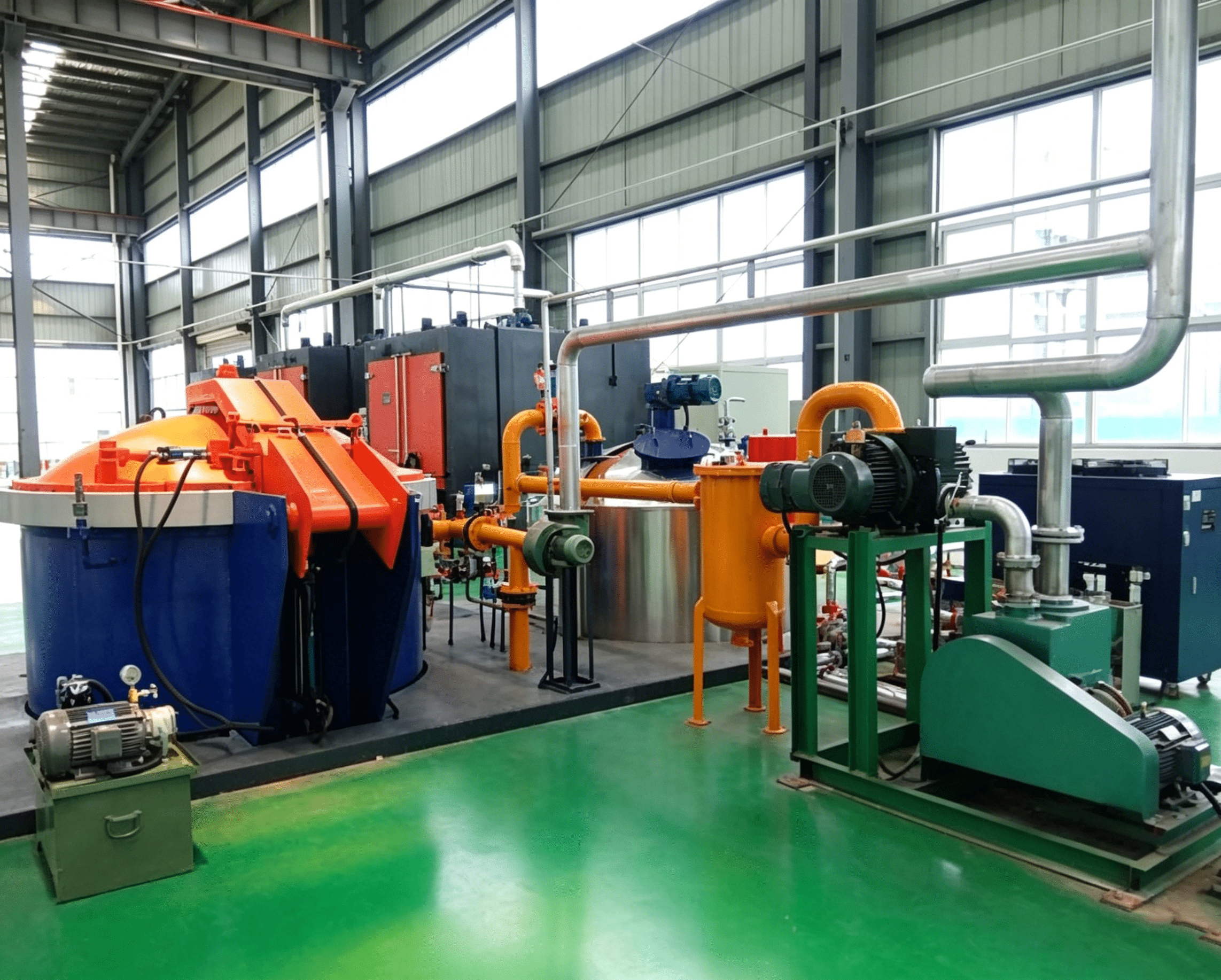

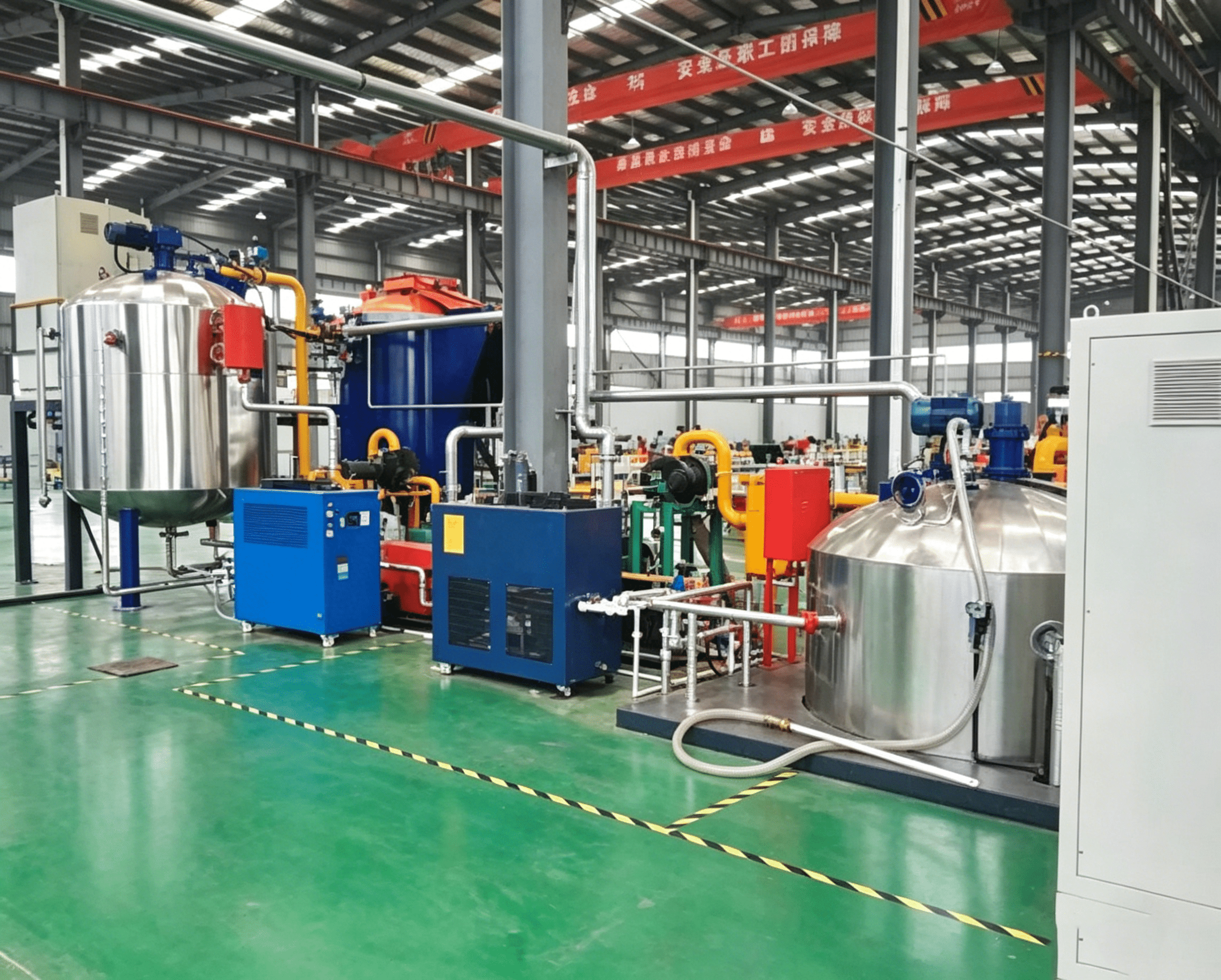

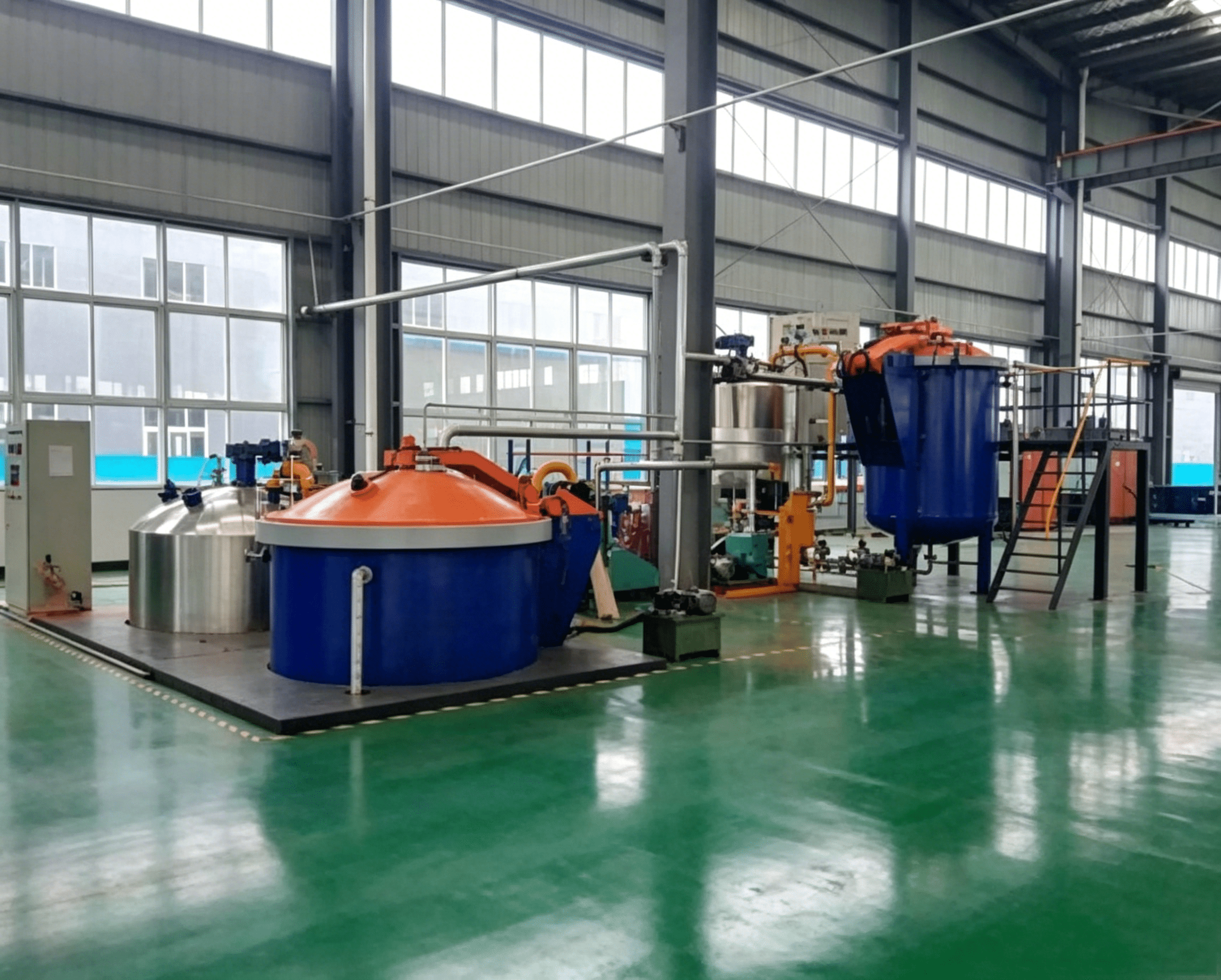

The vacuum pressure impregnation (VPI) The equipment is used for the vacuum pressure impregnation insulation process of various high-voltage motor stators and rotors, various transformers, reactors and other products. It can also be used in the integral vacuum pressure impregnation process for DC motors, low voltage AC motors, etc. The device is suitable forHGrade liquid impregnating resin material.

Description of main functions

1.Place the entire product directly into the dip tank. The total amount of the liquid resin material is reduced through reasonable design.
2.The product is placed vertically. The bottom of the tank is equipped with a high-strength support tray, which can bear weight and impact force. The tank is equipped with a level measuring device, which can be protected and displayed, and the operator can set the level.
3.Adopt new advanced technology and quality control components. The liquid feedback system is provided with a membrane degasser.
4.The control system is easy to operate and user friendly. The system can automatically record various process parameters and measurement data.
5.Multiple interlocks and chain locks. The system has effective protection and safe operation performance.

Technical advantages:
Easy to evaporate water and air
The residual water content is less than10ppm? Good insulation performance

Good moisture resistance

High dielectric properties

Recycling of resin materials

High efficiency and high quality

Main components:

1.Vacuum pressure impregnation tank

2.Vacuum tank

3.Vacuum pump system

4.Compressed air filter

5.Hydraulic system

6.Resin feedback system

7.Control System

8.Pressure relief device

9.Steel platform
