Transformer Winding Machine is designed to wind HV and LV coils of transformer , reactor and other electrical equipments. HV lead coil is wire structure, whereas LV coil is foil structure. It can simultaneously complete LV foil winding and HV wire winding .This equipment is used in electrical industry of the similar coil.

Combined foil & wire winding machine design to wind high voltage coil and low voltage coil of transformer and reactor . HV lead coil is wire, and LV coil is foil. Can be done at the same time on the equipment of high and low voltage coil winding.

LV foil coil use various thickness copper or aluminum foil strips as conductor，with strips insulation material as layer insulation, and complete the coil on the foil winding machine to form roll coil .

HV coil use a single round wire or rectangle wire as conductor to winding.The coil can be round, ellipse and rectangle.

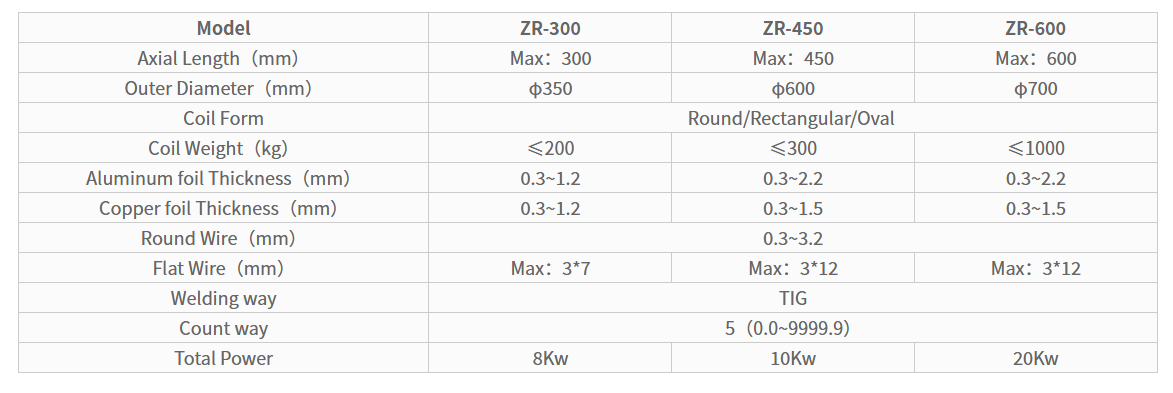

Technical Parameter For Combined Transformer Winding Machine

Feature Of Combined Winding Machine

This equipment is used in similar coil of electrical industry .

The machine adopts PLC control method, has high automatic degree , complete functions, etc, ensure the axial compactness and radial firmness.

Various configurations of the equipment provide the enough support for producing qualified electrical coils.

It is essential machine to manufacture the above electrical product components .
