Double-spot welder for corrugated fin of transformer

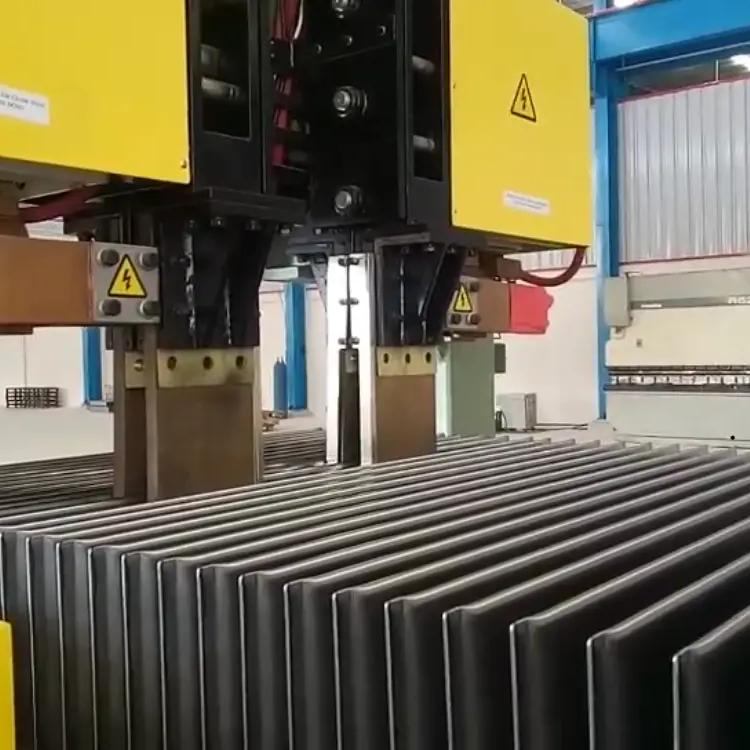

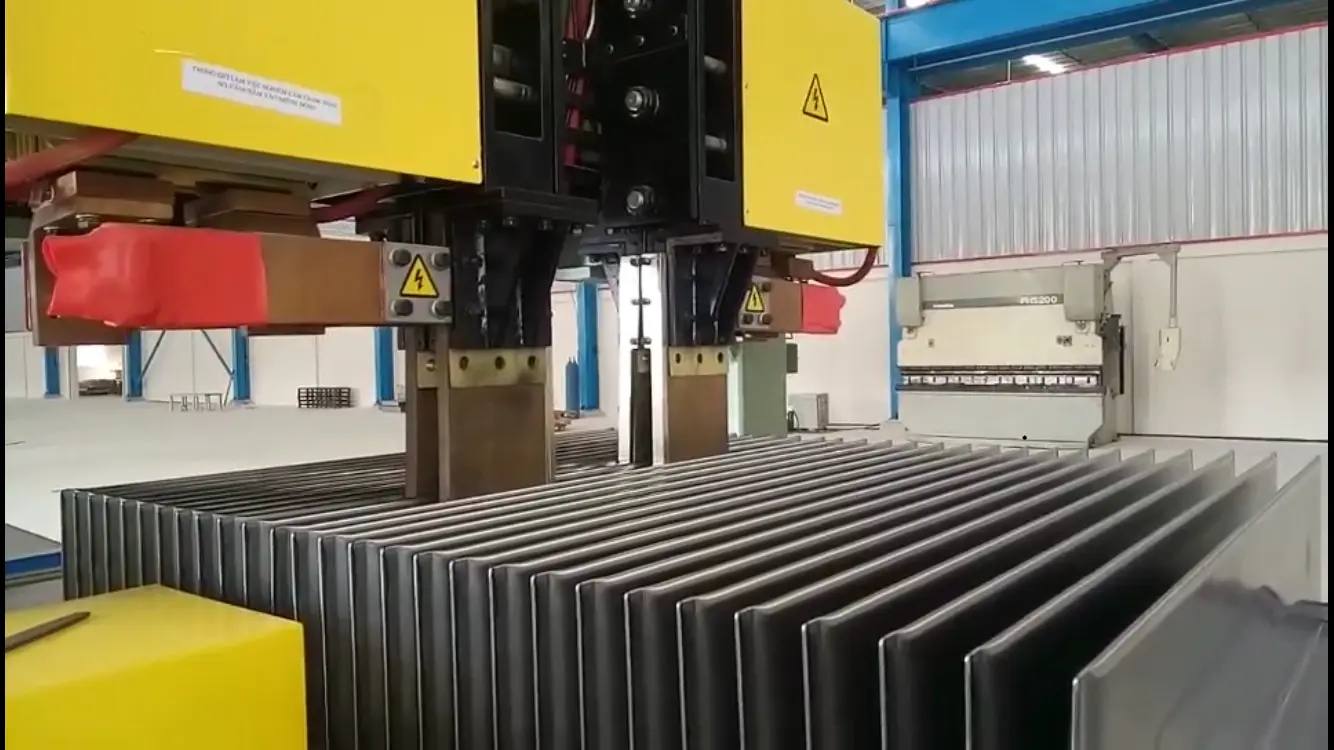

The transformer corrugated fin double spot welding machine is a auxiliary machine for Corrugated Tank Fin Forming. This spot welding machine allows to insert a strip on each panel edge, and attach it to the panels through spot welding system at a fixed pitch in the flutes. With High Precision of each panel length. Make Easy welding on tanks frame.
This machine is special designed for spot welding on the reinforcing ribs of the corrugated fins. All the welding parameters can be set on touch screen, with PLC system the machine can run fully automatically.
Features:
Delta servo motor system, with precision controlling
6 moving directions, all the welding parameters can be set on system
PLC automatic control, touch screen operating

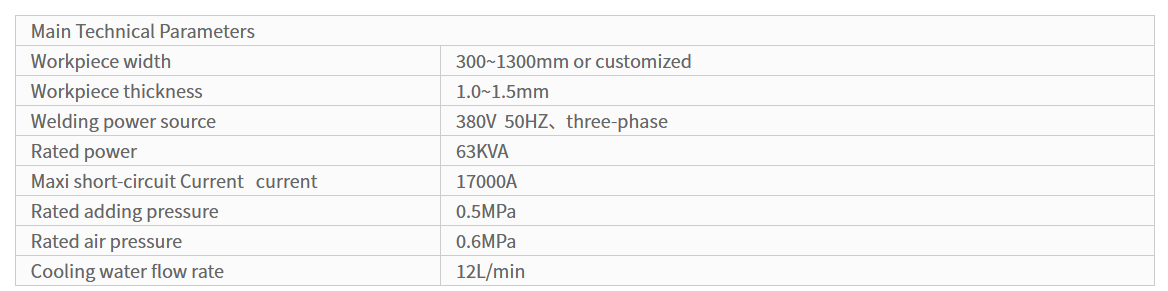

ZDL-1300 Spot Welding Machine（Double spot welding）

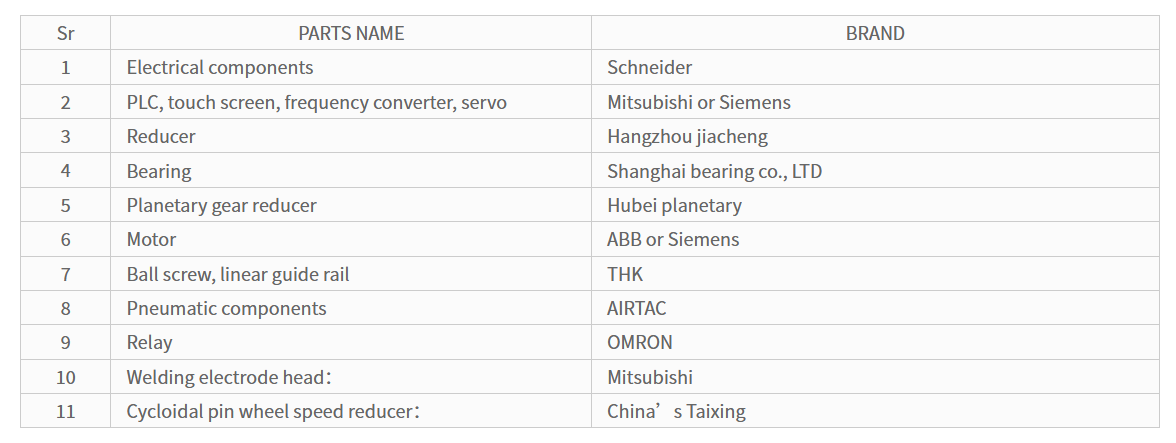

ZDL-1300 Spot Welding Machine（Double spot welding）Key Components
