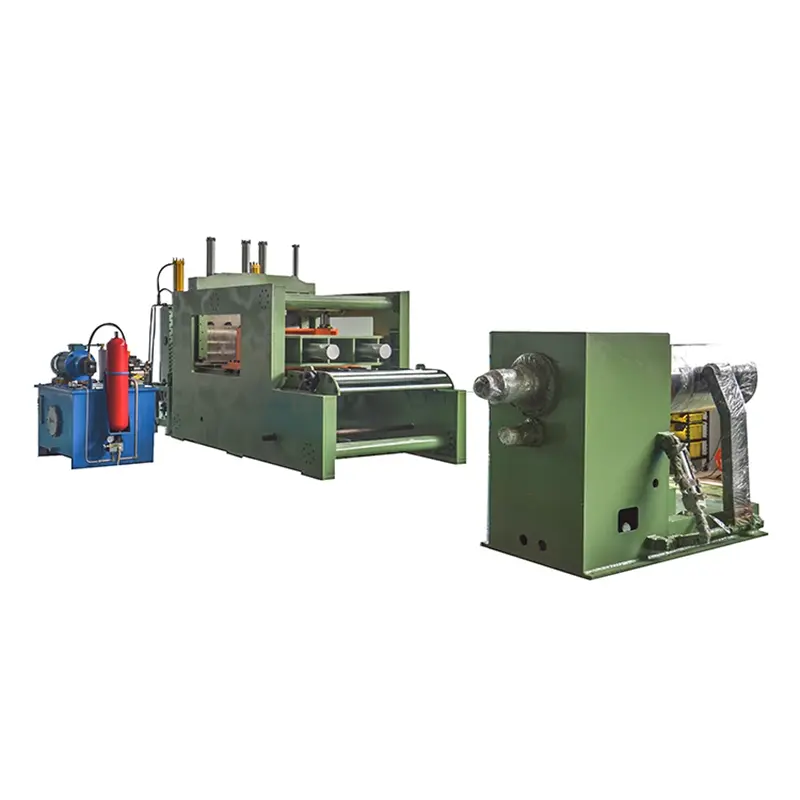

Column style transformer corrugated fin forming machine is the special equipment for manufacturing corrugated fin walls for transformer tank. Corrugated Fin Folding Machine is designed to provide an automated solution for the fabrications of corrugated wall tanks for electrical transformers. The machine which is comprised of a Decoiler, fin foiling machine, and automatic welding utilizes a PLC control system. Our oil tank forming machine is much more friendly and easy operation.

The walls and covers of the tank are made of corrugated steel. The corrugation provides additional strength to the tank and makes it more resistant to damage during transportation and assembly. The corrugated tank design also provides better heat dissipation, reduces noise, and improves insulation.

Working flow of the transformer oil tank fin forming line

Uncoiling -- coil feeding -- plate folding -- cutting -- run-out

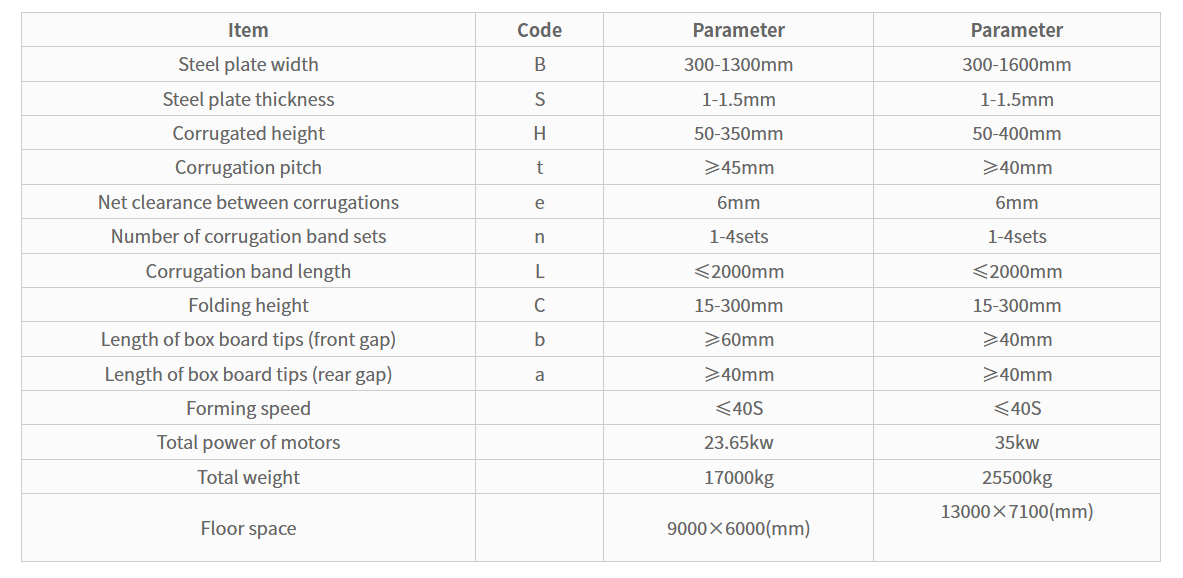

Technical Parameter For Corrugated Fin Wall Panel Forming Machine

Features Of Transformer Corrugated Tank Fin Production Line

Specially designed for forming and welding transformer tank fin.

PLC control, fully automatic line: automated conveying, clamping and welding.

Touch screen control it is easy and convenient to operate.

High-speed welding, much faster than manual welding.

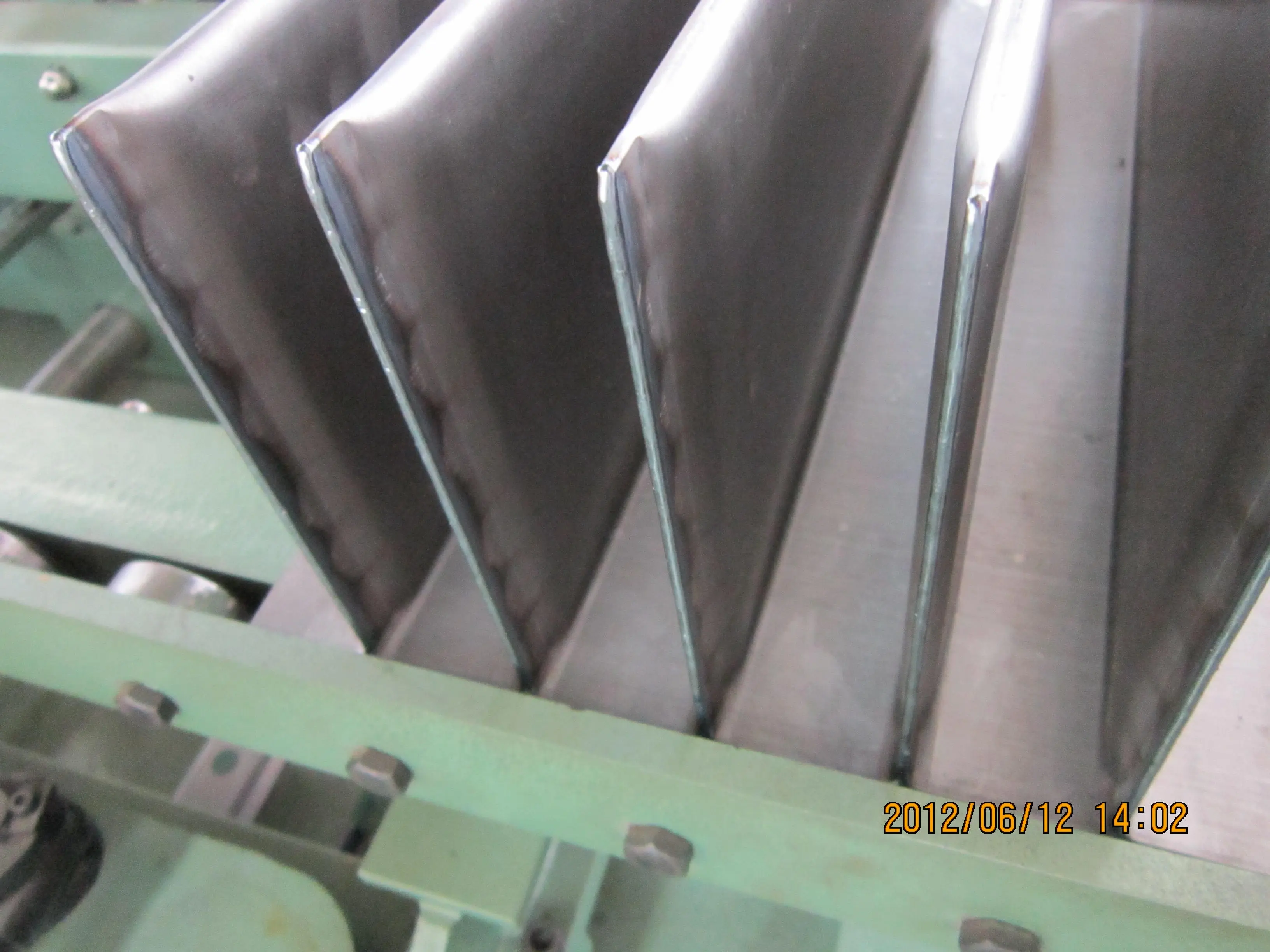

The welding is close and the surface is very clean and smooth.
