4000 A High Current Injector for Transformer Temperature Rise Test System
4000A High Current Injector,combines the advantages of similar products at home and abroad, using CNC technology, strong anti-interference ability,it has the advantages of large output power, small size and light weight. Mainly used in 3-Phase Current Transformer Temperature-Rise Testing System.
1.Overview
4000A High Current Injector,combines the advantages of similar products at home and abroad, using CNC technology, strong anti-interference ability,it has the advantages of large output power, small size and light weight. Mainly used in 3-Phase Current Transformer Temperature-Rise Testing System.

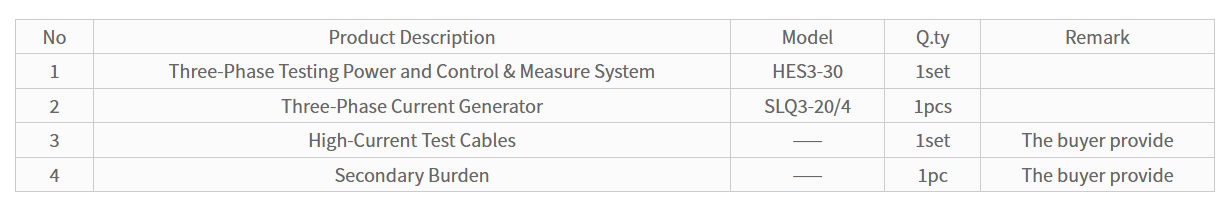

2. Testing System List and Quantity:

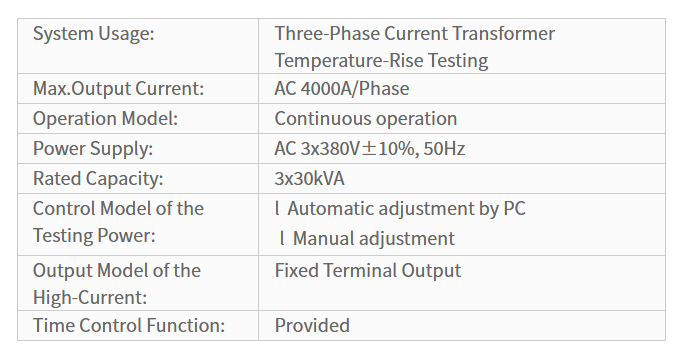

3. Main Technical Data:
4. Details of the Technical Data

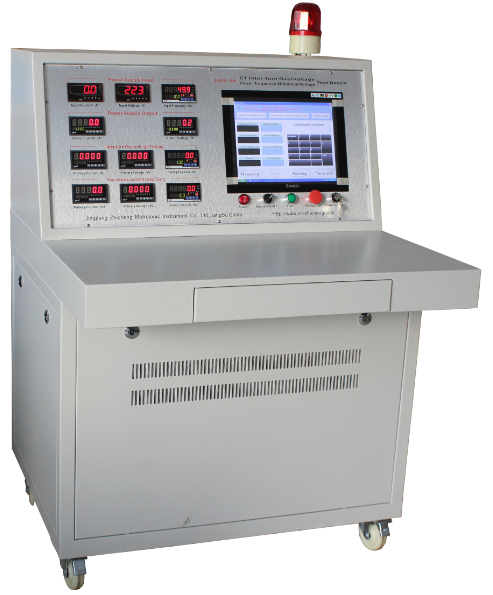

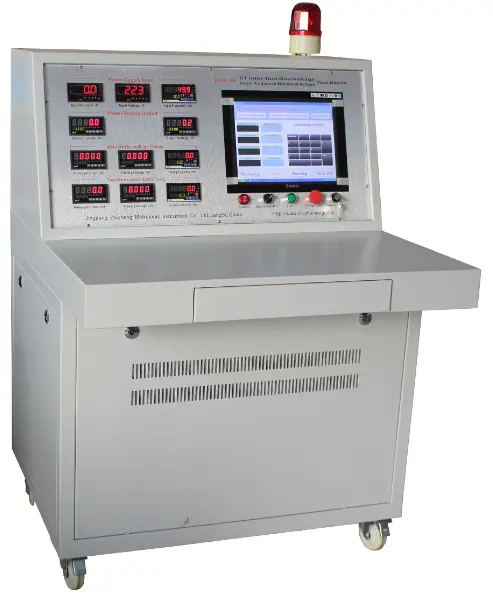

Products Information of the Three-PhaseTesting Power and Control & Measure System (Model:HES3-30)
Remarks: The picture is only for reference, it will difference from actual product.

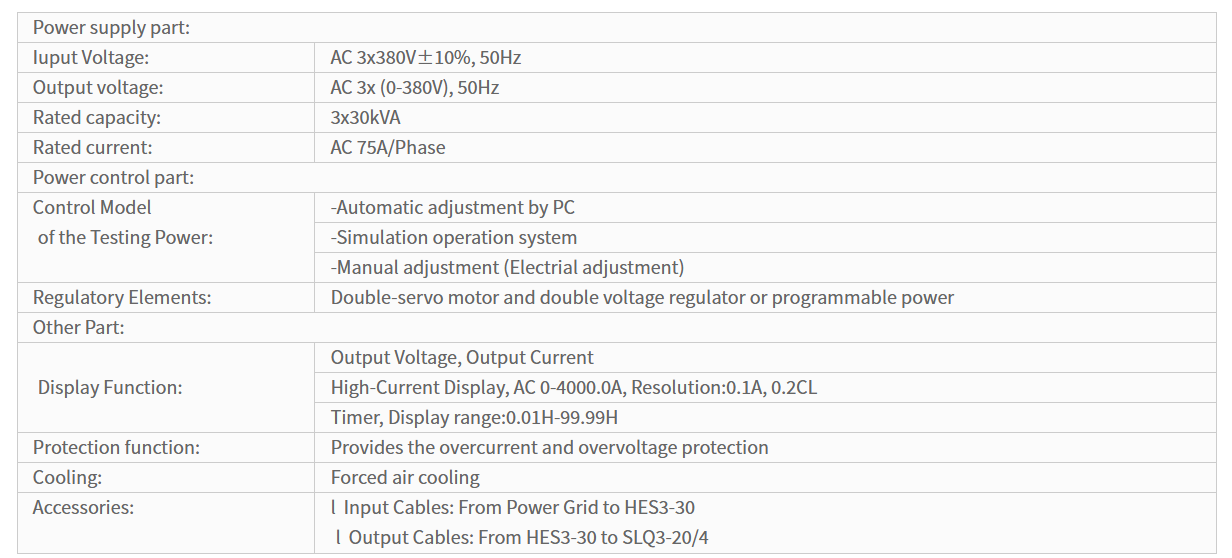

Main Technical Data:
Products Information of the Current Generator (Model: SLQ3-20/4)

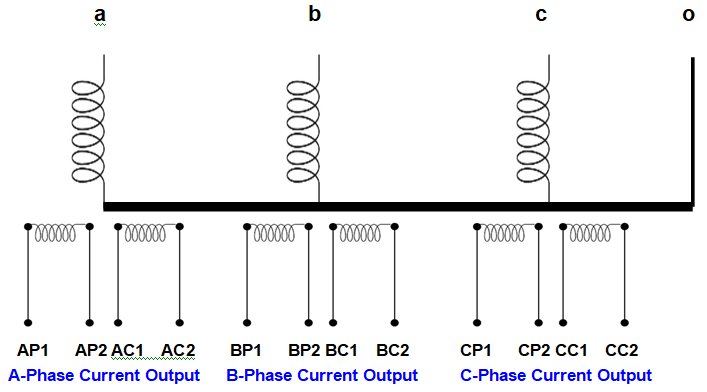

Electric diagram:
Panel Layout:

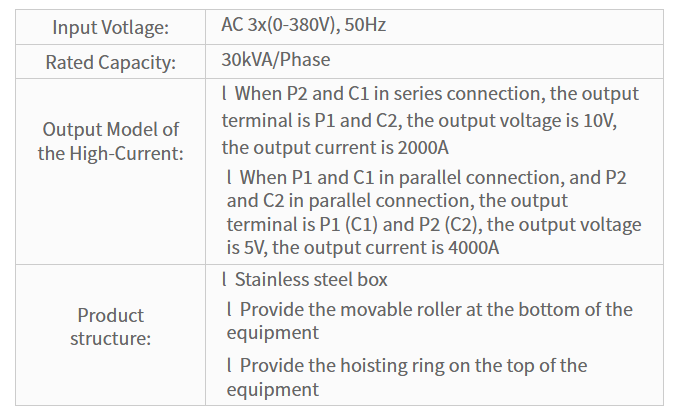

Main Technical Data:
