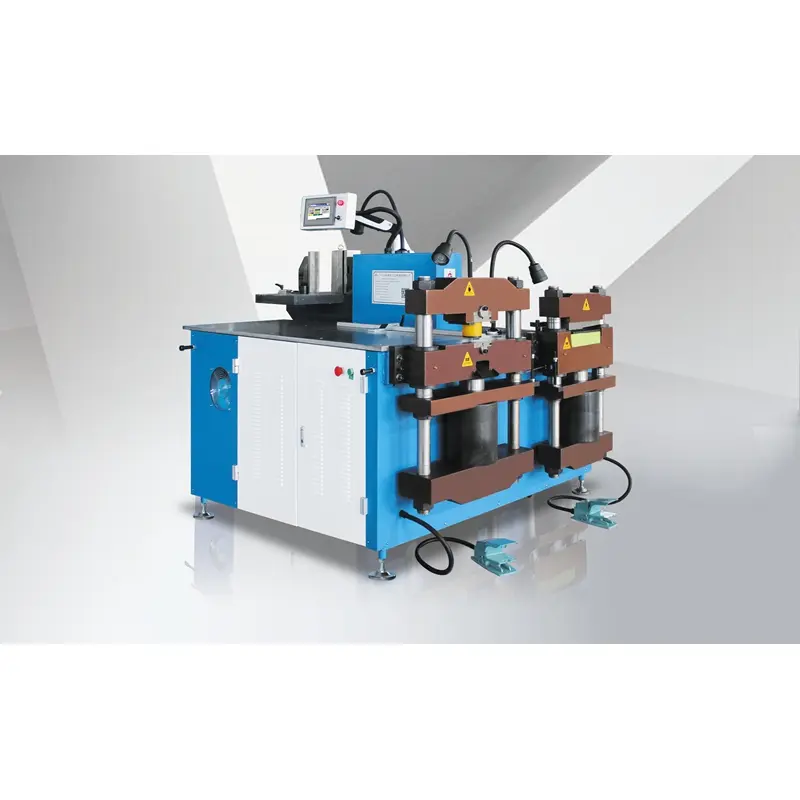

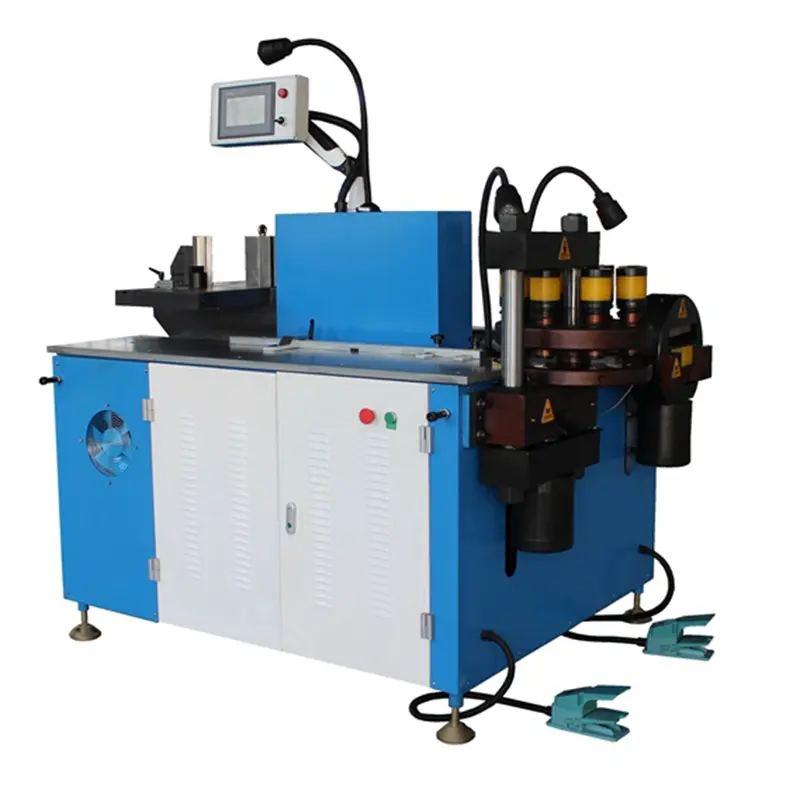

Multi-functional Busbar Process equipment has three units:Punching ,shearing and bending . We can supply multifunctional equipment or seperate function equipment as you choose.

The punching unit has turret tooling library, it maximally can hold 8 (punch and embossing) dies or 7 punch dies and 1emossing die;

The Bend Unit adopts overall structure ,angular CNC method, operation is simple and high accuracy;

The Shear Unit adopts circular overall structure, its design is new and unique ,proper stress , which can guarantee long time usage without deformation;

Busbar Cutting Punching And Bending Machine adopts dual layer platforms design scheme, three units can be operated at the same time without disturbing each other.

Busbar Punching Bending Cutting Machineis equipped with auto refueling and draining system ,the operation is simple and convenient, the hydraulic oil enters oil tank through the filter, which can protect the whole hydraulic system from any contamination;

Busbar Cutting Punching Bending Machine adopts stainless steel oil tank, which can guarantee no corrosive degeneration of the hydraulic oil and extend the usage life span of hydraulic oil and each sealing parts;

PLC control, stable and reliable.

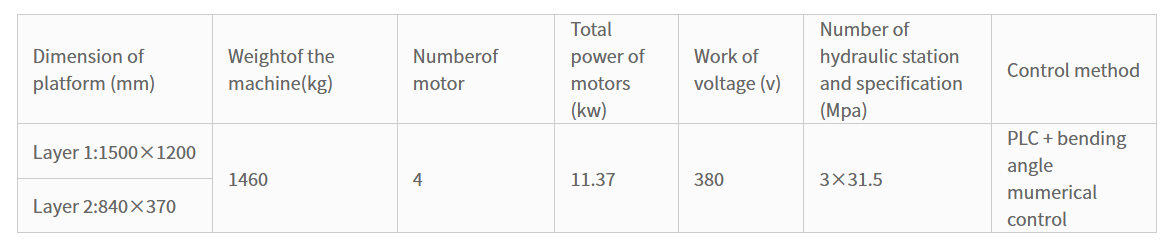

Technical Data For Busbar Punch Cut Bend

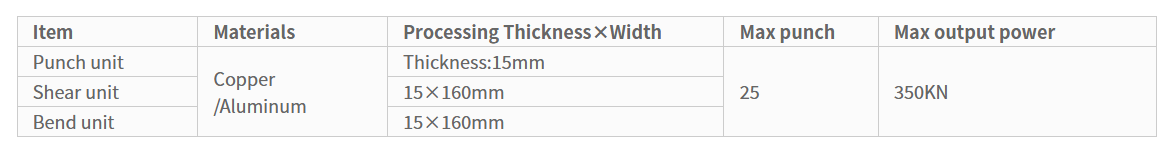

Configuration Of Busbar Processing Machine
