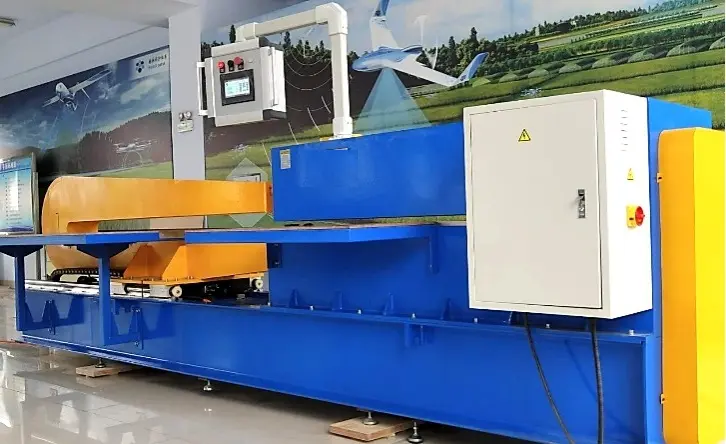

The round cutting machine is mainly used for cutting transformer insulating board and glass cloth board. The shear thickness is 1~3mm. It can also cut other boards with the same strength.The design takes fully into account the technological requirements in the transformer manufacturing process to ensure the smoothness and evenness of the section.According to the operation mode for the general type and CNC type round shear.

Main Features of round cutting machine

(1) Round cutting machine is easy to adjust, adjust the position of the rear frame, and lock the rear frame, can be cut into a batch of parts.

(2) This series of Paperboard Circular Shear machine tools have small dimensions, simple operation, saving machine floor area.

(3) Safety and reliability.The transmission parts of the Paperboard Circular Shear machine are considered to be reliable and convenient for maintenance, and equipped with protection to ensure personal safety.

(4) There are support rods on both sides of the headstock box, the height which can be adjusted. When cutting large diameter parts, it is used for supporting insulating cardboard to ensure the shearing accuracy.

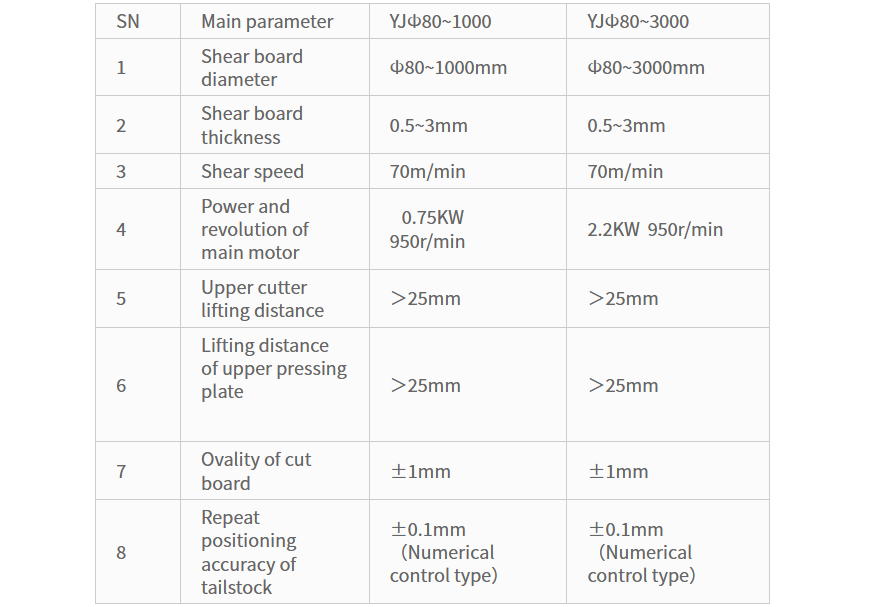

Technical parameter for Paperboard Circular Shear machine
