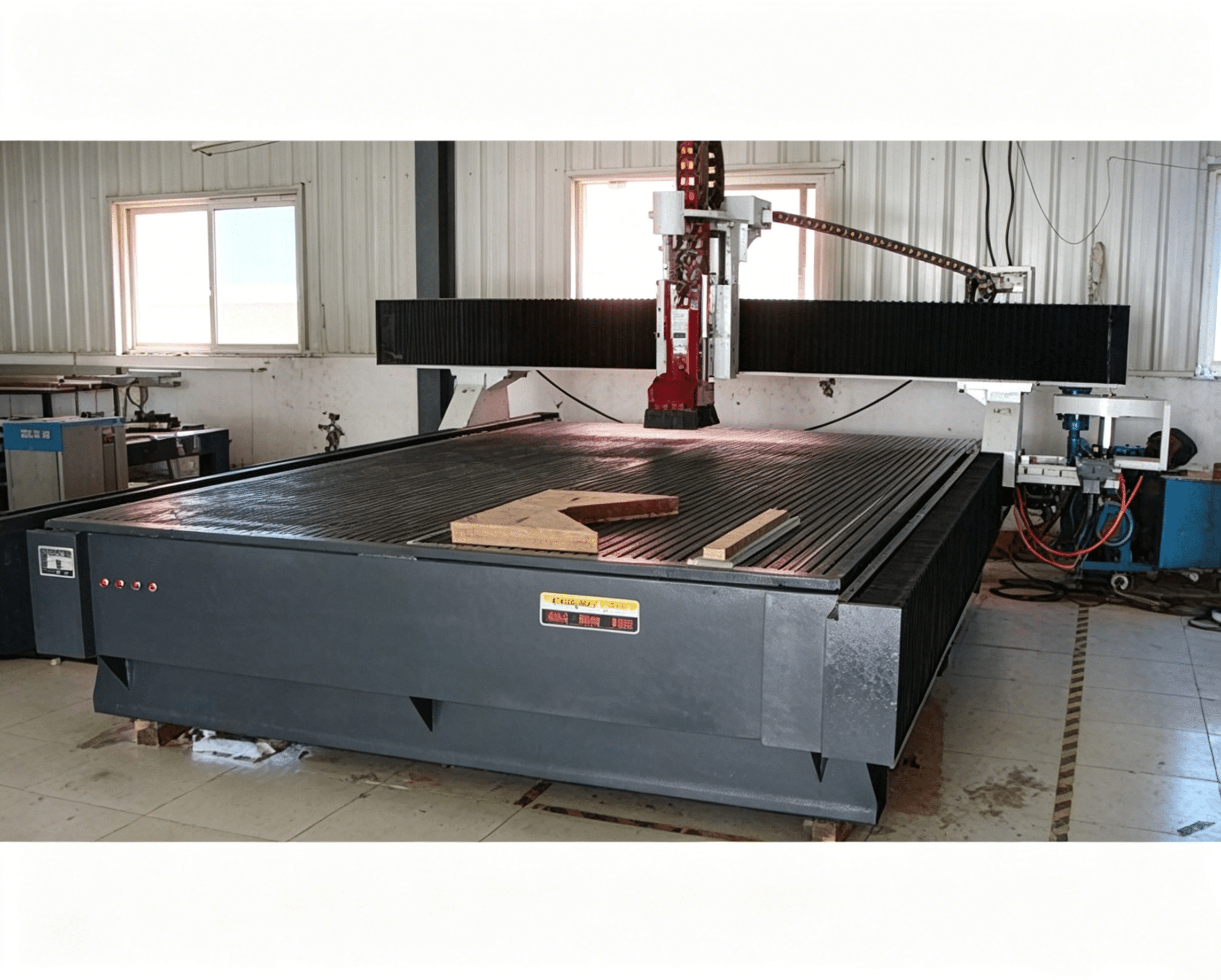

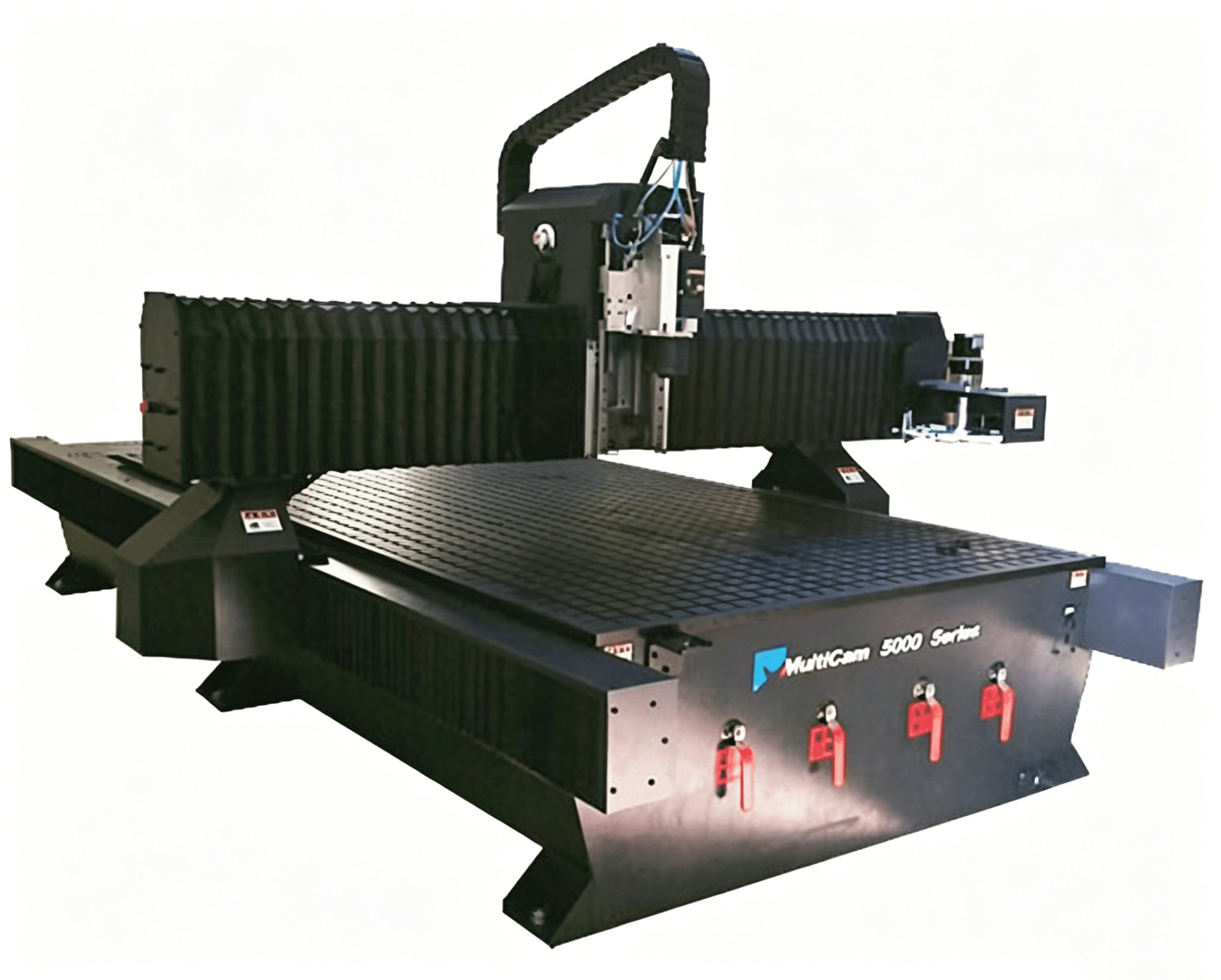

CNCInsulation machining center is specially designed for the processing of transformer insulation. It is capable of processing a wide range of materials, including plywood, laminated wood, laminated cardboard, and epoxy board. The machine seamlessly integrates cutting, grooving, engraving, drilling and milling functions, providing a comprehensive solution for precise and efficient insulation production. Its versatility and integration simplify the manufacturing process and ensure the manufacture of high-quality, highly reliable transformer insulators.

Main features
1.The machine features a robust all-steel construction with a stress-relieved and stable frame, designed using finite element analysis.
2.Equipped with a fully automatic lubrication system for efficient maintenance.
3.It adopts world famous brand parts, including Yaskawa AC servo system and automatic tool changing spindle imported from Italy.
4.Use high-precision transmission mechanism, such asXShaft andYThe shaft adopts an imported linear guide rail,XShaft andZHigh precision ball screw is adopted for the shaft.
5.The vacuum suction table is equipped with a pneumatic circulation system to ensure minimum air consumption.
6.The special tools made of imported hard alloy ensure the smoothness and burr-free of the insulation processing.
7.Equipped with a large capacity dust removal system, the diameter of the dust collection pipe is200Millimeter.
8.A coolant spray system is used to cool the tool and workpiece during machining.
